Description
Parameters

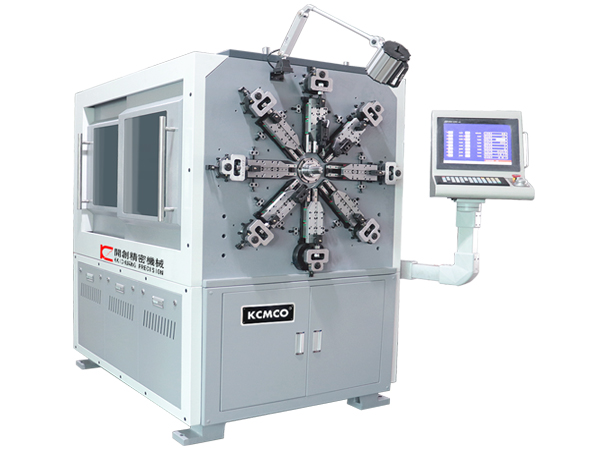

| 机型 | Model | KCT-1220WZ |
| 轴数 | Number Of Axes | 12 |
| 加工线径 | Wire Diameter | 0.3-2.0mm |
| 加工送线速度 | Max. Wire Feed Speed | 150m/min |
| 旋绕比 | Spring Index | 3 |
| 送线轮组数 | Feed Roller Group | 2 Groups |
| 送线伺服电机 | Feed Servo Motor | 2.9kw |
| 转芯伺服电机 | Quill Servo Motor | l.0kw |
| 转线伺服电机 | Wire Rotation Motor | 2.9kw |
| 成形伺服电机 | Fomer Servo Motor | 0.85kw *8 |
| 卷曲伺服电机 | Spinner Servo Motor | 0.4kw |
| 气压 | Air pressure | 0.2-0.4Pa |
| 汽缸 | Air cylinder | 5 |
| 探针 | Probe | 5 |
| 电源 | Power | 3P/380V 50/60HZ |
| 机器尺寸(长*宽*高) | Dimension (L*W*H) | 1600*1160*1750mm |
| 机器重量 | Weight | 1500KG |
